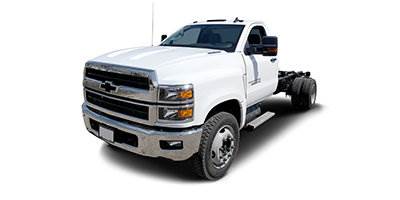

2024 Chevrolet 5500 Cab & Chassis Truck - Automatic

Options:

BATTERY TOP POST THREADED BATTERY JUMP START STUD (located on battery box)
DRIVER INFORMATION CENTER 4.2-INCH DIAGONAL COLOR DISPLAY INCLUDES DRIVER PERSONALIZATION WARNING MESSAGES AND VEHICLE INFORMATION
REAR AXLE 15 500 LB. (7 031 KG)
SPARE TIRE DELETE (STD)
DARK ASH SEATS WITH JET BLACK INTERIOR ACCENTS VINYL SEAT TRIM
WHEELS 19.5 X 6.75 6-ALUMINUM WHEELS 8-HOLES HUB PILOTED Dura-Bright finish is on the outside of the wheel
26 000 LB. GCWR (11 793 KG)
LICENSE PLATE KIT FRONT
STEERING WHEEL LEATHER-WRAPPED WITH AUDIO AND CRUISE CONTROLS
GRILLE CHROME
BATTERIES HEAVY-DUTY DUAL 1300 COLD-CRANKING AMPS includes battery box mounted to left side under cab
REMOTE KEYLESS ENTRY
SEATS FRONT 40/20/40 SPLIT-BENCH CLOTH OR VINYL 3-PASSENGER. Includes driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Also includes manually adjustable driver lumbar and storage pockets. Includes (AG1) 10-way power seat.)
VOCATIONAL SPECIFIC HEAVY SUSPENSION PACKAGE Allows the selection of 7 000 lb. 8 000 lb. front axles and/or 15 500 lb. rear spring suspension on trucks that will be upfitted with the following vocational bodies: Utility/Service Bodies Aerial Lift/Bucket bodies Front Plow/Rear Spreader Applications and Landscape Dump Bodies.
6-SPEAKER AUDIO SYSTEM
FRONT STABILIZER BAR
SHOCK ABSORBERS REAR
STEERING WHEEL AUDIO CONTROLS
WHEELBASE 165 (419.1 CM) 84 CA (STD)
PROVISIONS FOR ELECTRICAL SWITCH BANK consists of (6) two position latching rocker style switch modules with an on/off indicator window. The application of each switch will be defined by the customer/up fitter. Located on Headliner.
FRONT AXLE 7 500 LB. DANA SPICER 60-256 SINGLE-REDUCTION FRONT DRIVING
RECOVERY HOOKS FRONT FRAME-MOUNTED BLACK
MUD FLAPS FRONT
DEFOGGER REAR-WINDOW ELECTRIC
SNOW PLOW PREP PACKAGE includes (UNL) auxiliary harness for headlamps and turn signals (KW5) 220-amp alternator forward lamp wiring harness and (TRW) provision for cab roof mounted lamp/beacon
BUMPER FRONT CHROME
TIRES REAR 225/70R19.5H TRACTION BLACKWALL CONTINENTAL Max Axle Load: 16 000 lb.
GLASS DEEP-TINTED
SKID PLATE STEEL FRAME-MOUNTED PROTECTS THE TRANSFER CASE FROM THE GROUND
GVWR 19 500 LB. (8845 KG)
ENGINE BLOCK HEATER
WINDOWS POWER WITH DRIVER EXPRESS UP AND DOWN AND EXPRESS DOWN ON ALL OTHER WINDOWS
ENGINE DURAMAX 6.6L TURBO-DIESEL V8 B20-DIESEL COMPATIBLE 350 hp @ 2500 rpm 750 lb.-ft. torque @ 1400 rpm (STD)
TIRES FRONT 225/70R19.5H HIGHWAY BLACKWALL CONTINENTAL Max Axle Load: 8 000 lb.
REAR SUSPENSION 15 500 LB. (7 031 KG) MULTI-LEAF VARI-RATE
ELECTRICAL PROVISIONS REAR OF FRAME UPFITTER BODY BUILDER WIRING includes Sealed Connectors for Tail/Amber Turn/Marker/Backup/Accessory Power/Ground and Sealed Connector for Stop/Turn
AUDIO SYSTEM CHEVROLET INFOTAINMENT SYSTEM WITH 8 DIAGONAL COLOR TOUCH-SCREEN AM/FM stereo with seek-and-scan and digital clock includes Bluetooth handsfree calling and streaming audio with select phones; wired phone projection via select 3rd party apps; USB ports; auxiliary jack; voice-activated technology for radio and phone; and Shop with the ability to browse select and install apps to your vehicle. Apps include Pandora iHeartRadio The Weather Channel and more. Includes (TG5) Single-slot CD/MP3 player (UQ3) 6-speaker audio system (UDD) 4.2 diagonal Driver Information Center (NP5) Leather-wrapped steering wheel and (UK3) Steering Wheel Audio Controls. Requires (A52) Front 40/20/40 split-bench seats.)
SUMMIT WHITE
AXLE TO END OF FRAME 63
WORK TRUCK PREFERRED EQUIPMENT GROUP includes standard equipment
ASSIST STEPS ALUMINUM
AXLE LIMITED SLIP DANA SPICER TRUETRAC TORQUE PROPORTIONING LIMITED SLIP
PAINT SOLID
SEAT ADJUSTER DRIVER 10-WAY POWER
LAMPS REAR LED STOP/TURN AND LICENSE PLATE WITH INCANDESCENT BACKUP LAMPS
DPF DIESEL PARTICULATE FILTER MANUAL REGENERATION customer regeneration will not be allowed until the DPF load percentage has reached 100% full and a driver information center (DIC) message has been shown
BACK-UP ALARM CALIBRATION This calibration will allow installation of an aftermarket back-up alarm by disabling rear perimeter lighting
5500 HD SERIES
FOG LAMPS FRONT HALOGEN
GRILLE GUARD SCREEN STONE PROTECTION (mounted to bumper)
MIRRORS OUTSIDE HEATED POWER-ADJUSTABLE VERTICAL TRAILERING UPPER GLASS MANUAL-FOLDING AND EXTENDING BLACK. Includes integrated turn signal indicators consisting of 51 square inch flat mirror surface positioned over a 24.5 square inch convex mirror surface with a common head and lower convex spotter glass (convex glass is not heated and not power adjustable) and addition of Auxiliary cargo lamp for backing up (helps to see trailer when backing up with a trailer) and amber auxiliary clearance lamp
BACKUP ALARM (Includes (SFW) SEO Calibration for backup alarm.
RUGGED DUTY SERVICE TRANSMISSION AUTOMATIC CLOSE-RATIO 6 SPD WITH DOUBLE OVERDRIVE ALLISON A1700RDS ratios: 3.10 1ST 1.80 2ND 1.40 3RD 1.00 4TH 0.70 5TH 0.61 6TH Rugged Duty Series
REAR AXLE 4.30 RATIO Max road speed: 75 MPH
HORN DUAL-NOTE
ALTERNATOR 220 AMPS
AUXILIARY HARNESS 3' FOR HEADLAMPS AND TURN SIGNALS
PROVISION FOR CAB ROOF-MOUNTED LAMP/BEACON provides an overhead console mounted switch and electrical wiring tucked beneath the headliner for a body upfitter to connect a body-mounted warning or emergency lamp
SINGLE-SLOT CD/MP3 PLAYER
POWER TAKE OFF ENGINE CONTROL PROVISIONS Access is available on left-hand and right-hand side
FUEL TANK FRONT AND REAR 65 GALLON TOTAL
POWER OUTLET 110-VOLT AC
Turbocharged
Four Wheel Drive
Power Steering
ABS
Tires - Front All-Season
Tires - Rear All-Season
Running Boards/Side Steps
AM/FM Stereo
MP3 Capability
Auxiliary Audio Input
Split Bench Seat
Vinyl Seats
Adjustable Steering Wheel
Power Door Locks
Cruise Control
A/C
Traction Control
Stability Control
Traction Control
Daytime Running Lights
Automatic Headlights
Driver Air Bag
Passenger Air Bag
Passenger Air Bag On/Off Switch
Front Side Air Bag
Front Head Air Bag
Passenger Air Bag On/Off Switch
Back-Up Camera
